Off-Grid Battery-Based
Solar Systems

Complete And Pre-Wired

With BOXED Solar, you will find the battery-based power system of the right size for your application. Our complete off-grid systems include everything from the solar panels and inverter to the batteries and accessories. They come pre-wired with all the necessary circuit protection, significantly reducing installation time. We offer wiring diagrams and outstanding support from beginning to end. Continue below to learn what we mean when we say complete.

Monocrystalline Solar Panels
And
A MPPT Charge Controller

Efficient And Reliable Charging

Monocrystalline Solar Panel Off Grid

The Canadian Solar or Trina Solar panels used in BOXED off-grid systems feature 60 PERC monocrystalline solar cells for a nominal output power of 300 to 320 Watts. The panel’s peak efficiency is in the neighborhood of 19% as they perform exceptionally well in overcast conditions. These panels include a 10-year product warranty and a 25-year linear performance guarantee.

Nominal Power: 300W-320W
Cell Type: Monocrystalline

The Classic MPPT charge controller is ETL-listed and comes with built-in Arc Fault and Ground Fault protection. It offers advanced web monitoring and a frontal graphics display. Using the exclusive Hyper VOC and MPPT algorithm, the Classic charge controller has been designed to obtain the most power from your solar panels. It is made in the United States by Midnite Solar and comes with a 5-year standard warranty.

Midnite Solar Classic MPPT Charge Controller

Schneider Inverter-Charger
And
System Control Panel

We have experienced issues with Schneider Electric’s support and warranty fulfillment. To make sure we continue to provide the support you deserve, we are using Magnum Energy components in all our BOXED off-grid systems. Follow this link to see our Magnum Energy systems.

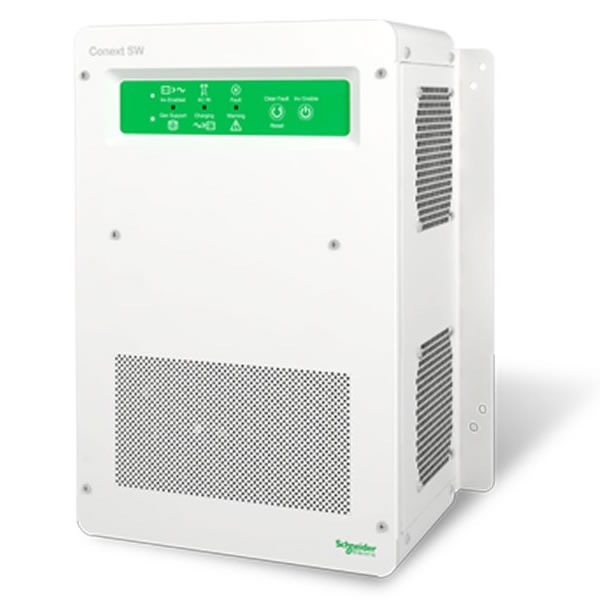

Schneider Conext SW Inverter-Charger
The Conext SW is an innovative pure sine wave inverter and charger. It can supply a 120/240 Volts AC output without an external transformer and can also be paired with fuel-based generators to extend its power capacity. The SW inverter-charger is a high-performing solution for backup power, self-consumption, and off-grid energy systems. It comes with a standard 2-year warranty.

Nominal Power: 4,000W
Output: 120V / 240V AC Single-Phase

Schneider Conext SW Inverter

Schneider Conext XW+ Inverter-Charger
The Conext XW+ is a powerful hybrid inverter with grid-tie functionality and dual AC power inputs. The inverter-charger can be used in single-phase and three-phase systems and offer an all-in-one solution for off-grid and battery backup applications. It can also be paired with fuel-based generators to extend power capacity. The XW+ comes with a standard 5-year warranty.

Nominal Power: 5,500W or 6,800W
Output: 120V or 240V AC Single or Three-Phase

Schneider Conext XW Hybrid Inverter

Conext SCP System Control Panel
Schneider’s System Control Panel (SCP) provides a single point of communication with your Conext SW or XW+ inverter. Use the soft push buttons on the front of the control panel to configure the inverter settings. The SCP features a backlit liquid crystal display that will show the operating status of your energy system.

Schneider Conext System Control Panel

Wiring Enclosure

All Connections In One Place

The Midnite Solar E-Panel allows you to have all of your DC and AC connections in one place, providing an ETL-certified enclosure for your wiring and circuit protection. Mount the Conext inverter on the sidewall of the E-Panel; the battery terminals of the inverter are then connected using tin-plated copper busbars. Similarly, the Classic charge controller mounts on E-Panel facilitating the wiring.

The E-Panel comes with a 175A breaker, busbars for AC inputs, AC output, neutral, ground, PV+, PV-, Bat+, Bat-, and a 500-amp shunt. It is made in the United States and comes with a 5-year warranty.

Have It Pre-Wired

Reduce Installation Time

Do not struggle with the small stuff. Have the E-Panel fully pre-wired. The pre-wired enclosures are rated for indoor use and are fully compatible with all Schneider Conext inverters and Midnite Classic MPPT charge controllers. They include the required breakers and connection busbars to ensure a professional and safe installation. The pre-wired enclosures come with a battery breaker (175A or 250A) and surge protection devices already installed. Midnite Solar wires the enclosures in their Washington facility and offers a 5-year warranty.

Midnite Solar XW Prewired System

Energy Storage

Flooded, AGM, & Lithium Batteries

We configure our off-grid systems with Trojan (flooded), Surrette Rolls (flooded), Fullriver (AGM), or Simpliphi (Lithium Ferrous Phosphate) batteries. They are all North America based manufacturers, and their batteries come with the most extensive product warranties in the industry. These batteries offer high performance, long life cycles, and a proven track record in renewable energy systems around the US. We size the energy storage of our BOXED solar systems to charge in one sunny day at full capacity – 50% Depth of Discharge (DOD) with flooded and AGM batteries, 80% DOD with LFP batteries.

Trojan L16RE Deep Cycle Battery
Surrette 6-CS-17PS Battery
Fullriver AGM Solar Battery
Simpliphi Lithium Solar Battery

Additionally You Will Get
Everything You Will Need

For A Successful Installation

Certified Support
Besides the downloadable installation manuals provided by the equipment manufacturers, our champion staff, which includes NABCEP-certified engineers, will be always available to help you with your project.

All Accessories
Our off-grid systems come with PV output cables, combiner box, and breakers for solar connections; they also include battery-interconnect cables. Other components, such as battery enclosures, auto generator start (AGS), and mounting system, can be added.

Wiring Diagrams
BOXED off-grid systems come with a full set of wiring diagrams and installation manuals. The PDF package covers wiring requirements, PV strings, breaker positioning, connection terminals, battery interconnection, and product datasheets.
