SolarEdge Inverters and Optimizers

SolarEdge


SolarEdge combines multiple technologies in one powerful energy conversion system. SolarEdge inverters and optimizers provide the flexibility and module level monitoring of microinverters with the price point and structure of a central inverter. Each SolarEdge energy system is comprised of a group of optimizers (one optimizer per solar panel) connected to a SolarEdge inverter unit. All single phase SolarEdge inverters come with a built-in CD disconnect. The inverter is so light that a single person can mount it on a wall using the supplied bracket. Each optimizer comes with a 25-year warranty, while the inverter comes with a standard 12-year warranty.

SolarEdge Inverters and Optimizers

SolarEdge Inverters and Optimizers


Available SolarEdge inverter models:
SE3800A-U (max AC 4150W)
SE5000A-U (max AC 5450W)
SE6000A-U (max AC 6000W)
SE7600A-U (max AC 8350W)
SE10000A-U (max AC 10950W)
SE11400A-U (max AC 12000W)

Configured voltage: 240VAC (208V capable)
Max DC voltage: 600V
Grid frequency: 60hz
Weight: 51-88 lbs depending on model
Dimensions: 30.5H x 12.5W in

Inverter specifications:
– Transformerless, ungrounded
– Max input voltage: 500VDC
– Reverse polarity protection
– Rapid shutdown compliant per NEC

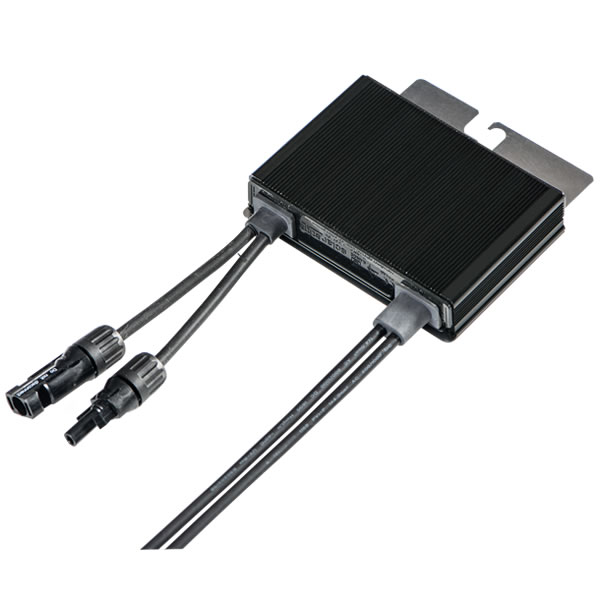

SolarEdge P300 optimizer
Designed for: 60-cell modules
Rated input DC power: 300W
Maximum input voltage: 48V
Weight: 1.4 lbs

Minimum string length: 8 optimizers
Maximum string length: 25 optimizers
Maximum power per string: 5220W
(Parallel strings of different lengths or orientations allowed)

Documentation

Datasheet

Datasheet for SolarEdge single phase inverter

Download

Manual

Installation manual for SolarEdge inverters

Download

Warranty

Limited warranty for SolarEdge inverters and optimizers

Download


Datasheet

Datasheet for SolarEdge power optimizer

Download

Manual

Installation manual for SolarEdge optimizers

Download
